Model providers

The Playground supports a wide range of model providers. You can select a provider, configure your preferred settings, and save these configurations to reuse across multiple prompts.

Use this page for a list of the available providers and their configuration options:

Amazon BedrockAnthropicAzure OpenAIDeepSeekFireworksGoogle GeminiGoogle Vertex AIGroqMistral AIOpenAIOpenAI compatible endpointXAI

For details on creating and managing model configurations, refer to the Configure prompt settings page.

Amazon Bedrock

Before you use this model, ensure you have AWS credentials or IAM role.

Authentication

Amazon Bedrock supports two authentication methods. IAM trusted entity is the recommended approach because it avoids sharing long-lived AWS access keys with LangSmith.

IAM trusted entity (recommended)

Not applicable for self-hosted LangSmith. Use Access Keys (or the Bedrock API Key) instead.

With IAM trusted entity authentication, you create an IAM role in your AWS account and allow LangSmith to assume it. No access keys are stored in LangSmith. Instead, LangSmith uses AWS STS to assume the role on each request.

To set this up:

1. Create an IAM role in your AWS account with permissions to invoke Bedrock models (e.g., bedrock:InvokeModel).
2. Add a trust policy that allows LangSmith’s AWS account (808407022534) to assume the role, using your LangSmith workspace ID as the external ID:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::808407022534:root"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "sts:ExternalId": "<your-langsmith-workspace-id>"
        }
      }
    }
  ]
}

You can find your workspace ID in your LangSmith workspace settings.

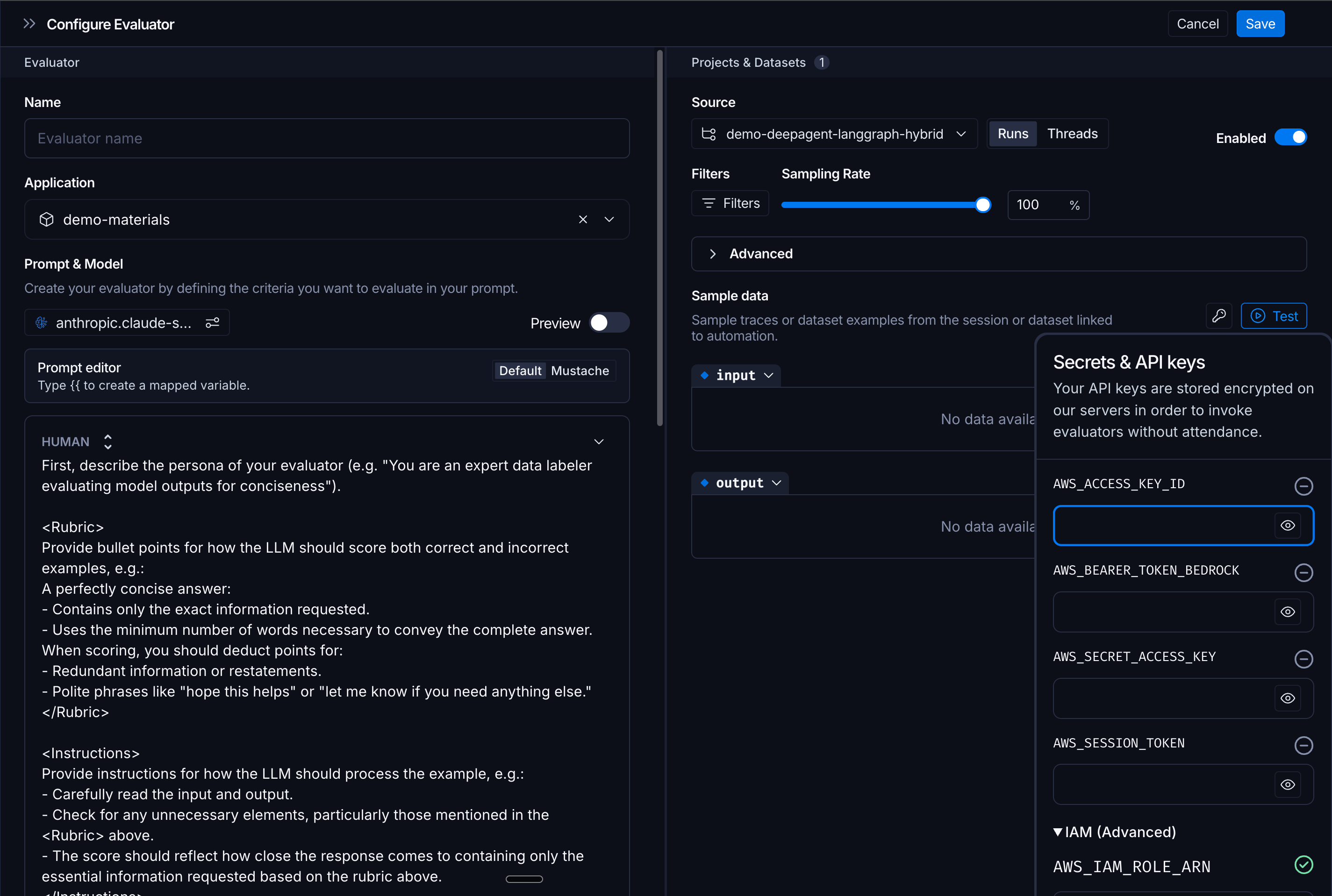

3. In the LangSmith Playground, open the Bedrock provider’s secrets configuration by clicking the Key icon (the IAM Trusted Entity option is not available in the model configuration dropdown itself). Then expand the IAM Trusted Entity section and enter the ARN of the role you created.



For more details on trust policies, see the AWS documentation.

Access keys

Alternatively, you can authenticate with AWS access keys (AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY). Enter these in the Bedrock provider configuration in the Playground. This method is simpler to set up but less secure because it requires storing long-lived credentials.

Available models

AWS Bedrock provides access to foundation models from multiple providers:

• Anthropic: Claude models.
• Amazon: Titan models.
• Cohere: Command models.
• Meta: Llama models.
• Others: Additional providers available based on region.

For the current list of available models, refer to the AWS Bedrock documentation.

Configuration parameters

Parameters depend on the underlying model provider:

For Anthropic models

Uses Anthropic configuration (see Anthropic section below).

For Amazon Titan

Parameter	Range	Description
Temperature	0.0 - 1.0	Response randomness
Max Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling

AWS-specific settings

• Region: AWS region for model deployment.

Tool calling

Depends on underlying model:

• Anthropic models: auto, any.
• Cohere models: auto.

Anthropic

Before you use this model, ensure you have an Anthropic API key.

Available models

Anthropic offers three tiers of models across their Claude generations:

• Opus: Highest intelligence and capability.
• Sonnet: Balanced performance and cost.
• Haiku: Fast and cost-effective.

Recent Claude models support extended thinking capabilities for showing reasoning processes.

For the current list of available models, refer to the Anthropic documentation.

Configuration parameters

Parameter	Range	Default	Description
Temperature	0.0 - 1.0	Optional	Randomness control (uncheck to use model default)
Max Output Tokens	1+	1024	Maximum response length
Top P	0.0 - 1.0	Optional	Nucleus sampling (uncheck for model default)
Top K	1+	Optional	Limits to top K tokens (uncheck for model default)

Temperature, Top P, and Top K are optional. When unchecked, Claude uses its internal defaults.

Extended Thinking

Available on supported Claude models. Enable the model to show reasoning before responding, similar to OpenAI’s o-series.

Parameter	Range	Description
Enable Extended Thinking	Toggle	Show/hide thinking process
Budget Tokens	1+	Max tokens for thinking (default: 1024)

When enabled, responses include:

1. A “thinking” section with the model’s reasoning.
2. The final response.

Advanced options

• Base URL: Override API endpoint for custom deployments.

Tool calling

• Supported Tool Choices: auto, any (requires at least one tool).
• Parallel Execution: No (sequential only).

Azure OpenAI

Before you use this model, ensure you have Azure OpenAI credentials (endpoint + API key).

Available models

Azure OpenAI provides the same model families as OpenAI:

• GPT series: General-purpose chat models.
• o-series: Reasoning-focused models.
• Legacy models: GPT-3.5 and GPT-4 variants.

Model availability varies by Azure region and requires deployment before use.

For the current list of available models, refer to the Azure OpenAI documentation.

Configuration parameters

Azure OpenAI supports the same parameters as OpenAI:

Standard parameters

Parameter	Range	Description
Temperature	0.0 - 2.0	Controls randomness. Lower = more focused, higher = more creative.
Max Output Tokens	1+	Maximum length of the response
Top P	0.0 - 1.0	Nucleus sampling threshold. Alternative to temperature.
Presence Penalty	-2.0 - 2.0	Penalize new topics (positive) or encourage them (negative)
Frequency Penalty	-2.0 - 2.0	Penalize repetition (positive) or allow it (negative)
Seed	Integer	For reproducible outputs

Advanced parameters

Reasoning Effort: Available on reasoning-optimized models (o-series and newer GPT models).

Service Tier: Available on newer models.

Other parameters:

• JSON Mode: Force valid JSON responses.
• Parallel Tool Calls: Execute multiple tools concurrently.

Azure-specific features

• Deployment Management: Models must be deployed before use.
• Regional Availability: Choose Azure regions for data residency.
• Content Filtering: Built-in content moderation and safety features.
• Managed Identity: Azure AD authentication support.
• Private Endpoints: VNet integration for secure access.

Tool calling

• Supported Tool Choices: auto, required, none, or specific tool name.
• Parallel Execution: Yes.

DeepSeek

Before you use this model, ensure you have a DeepSeek API key.

Available models

DeepSeek offers general-purpose models, reasoning-optimized models (R-series), and coding-specialized models.

For the current list of available models, refer to DeepSeek’s documentation.

Configuration parameters

Parameter	Range	Description
Temperature	0.0 - 2.0	Response randomness
Max Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling
Presence Penalty	-2.0 - 2.0
Frequency Penalty	-2.0 - 2.0

Fireworks

Before you use this model, ensure you have a Fireworks API key.

Available models

Fireworks provides high-speed inference for popular open-source models and fine-tuned variants, including:

• Llama: Meta’s Llama models in various sizes.
• Mixtral: Mistral’s mixture-of-experts models.
• Qwen: Alibaba’s multilingual models.
• DeepSeek: DeepSeek models.
• Other open models: Gemma, Phi, and more.

For the current list of available models, refer to Fireworks’ model documentation.

Configuration parameters

Parameter	Range	Description
Temperature	0.0 - 2.0	Response randomness
Max Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling

Tool calling

• Supported Tool Choices: auto, required, none.
• Parallel Execution: Yes.

Google Gemini

Before you use this model, ensure you have a Google AI API key.

Available models

Google offers Gemini models in multiple tiers (Ultra, Pro, Flash) optimized for different use cases.

For the current list of available models, refer to Google’s Gemini documentation.

Configuration parameters

Parameter	Range	Description
Temperature	0.0 - 2.0	Response randomness
Max Output Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling
Top K	1+	Top-k sampling

Tool calling

• Supported Tool Choices: auto, any, none.
• Parallel Execution: No.

Google Vertex AI

Before you use this model, ensure you have Google Cloud credentials.

Available models

Google offers Gemini models in multiple tiers (Ultra, Pro, Flash) optimized for different use cases, plus other models available through Vertex AI.

For the current list of available models, refer to the Vertex AI documentation.

Configuration parameters

Parameter	Range	Description
Temperature	0.0 - 2.0	Response randomness
Max Output Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling
Top K	1+	Top-k sampling

Advanced options

• Region Selection: Deploy in specific Google Cloud regions.
• Safety Settings: Configure content filtering thresholds.

Tool calling

• Supported Tool Choices: auto, any, none.
• Parallel Execution: No.

Groq

Before you use this model, ensure you have a Groq API key.

Available models

Groq provides high-speed inference for popular open-source models including Llama, Mixtral, and Gemma variants.

For the current list of available models, refer to Groq’s model documentation.

Configuration parameters

Parameter	Range	Description
Temperature	0.0 - 2.0	Response randomness
Max Tokens	1+	Maximum response length

Tool calling

• Supported Tool Choices: auto, required, none.
• Parallel Execution: Yes.

Mistral AI

Before you use this model, ensure you have a Mistral AI API key.

Available models

Mistral offers models in multiple tiers (Large, Medium, Small) optimized for different performance and cost requirements.

For the current list of available models, refer to Mistral’s documentation.

Configuration parameters

Parameter	Range	Description
Temperature	0.0 - 1.0	Response randomness
Max Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling

Tool calling

• Supported Tool Choices: auto, any, none.
• Parallel Execution: No.

OpenAI

Before you use this model, ensure you have an OpenAI API key or Azure OpenAI credentials.

Available models

OpenAI offers several model families with different capabilities and price points:

• GPT series: General-purpose chat models with various size/capability tiers.
• o-series: Reasoning-focused models optimized for complex problem-solving.
• Legacy models: Older GPT-3.5 and GPT-4 variants.

For the current list of available models, refer to the OpenAI documentation.

Configuration parameters

Standard:

Parameter	Range	Description
Temperature	0.0 - 2.0	Controls randomness. Lower = more focused, higher = more creative.
Max Output Tokens	1+	Maximum length of the response
Top P	0.0 - 1.0	Nucleus sampling threshold. Alternative to temperature.
Presence Penalty	-2.0 - 2.0	Penalize new topics (positive) or encourage them (negative)
Frequency Penalty	-2.0 - 2.0	Penalize repetition (positive) or allow it (negative)
Seed	Integer	For reproducible outputs

Advanced:

Reasoning Effort: Available on reasoning-optimized models (o-series and newer GPT models).

Controls reasoning depth before responding. Higher effort = better quality for complex tasks, longer latency.

Value	Description
none	Disables reasoning (standard chat behavior)
minimal	Minimal reasoning
low	Light reasoning
medium	Moderate reasoning (default)
high	Deep reasoning
xhigh	Extra deep reasoning (if supported by model)

When reasoning_effort is active (not none), temperature, top_p, and penalties are automatically disabled.

Service Tier: Available on newer models.

Controls request priority and processing allocation.

Value	Description
auto	System decides based on load (default)
default	Standard processing queue
flex	Lower cost, variable latency (if supported by model)
priority	High-priority queue, lower latency, higher cost

Other parameters:

• JSON Mode: Force valid JSON responses.
• Responses API: Improved streaming (default: enabled).
• Parallel Tool Calls: Execute multiple tools concurrently.

Tool calling

• Supported Tool Choices: auto, required, none, or specific tool name
• Parallel Execution: Yes

OpenAI Compatible Endpoint

Authentication varies by endpoint. Common options:

• API key: stored as a workspace secret and forwarded as Authorization: Bearer <key>.
• None: for unauthenticated local endpoints (for example, Ollama on localhost).
• OAuth2 client_credentials: stored on the model configuration. LangSmith mints a short-lived bearer at request time and refreshes it before expiry. See OAuth client credentials.

Configuration

Required:

• Base URL: Your endpoint URL (e.g., https://your-endpoint.com/v1).
• Model Name: Your model identifier.

Works with any framework or service that implements the OpenAI-compatible API format, including:

• Self-hosted open-source inference servers
• Model routing proxies
• Custom model endpoints

Configuration parameters

All OpenAI-compatible parameters:

Parameter	Range	Description
Temperature	0.0 - 2.0	Response randomness
Max Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling
Frequency Penalty	-2.0 - 2.0	Reduce repetition
Presence Penalty	-2.0 - 2.0	Encourage new topics

Advanced:

• JSON Mode: If endpoint supports it.
• Streaming: If endpoint supports it.
• Function Calling: If endpoint implements OpenAI format.

Tool calling

• Supported Tool Choices: auto, required, none (if endpoint supports).
• Parallel Execution: Yes (if endpoint supports).

Example endpoints

Local Ollama:

Base URL: http://localhost:11434/v1
Model: llama3.1

vLLM Server:

Base URL: https://your-server.com/v1
Model: mistral-7b-instruct

LiteLLM Proxy:

Base URL: https://litellm.example.com
Model: gpt-4 (routes to configured backend)

XAI

Before you use this model, ensure you have an xAI API key.

Available models

xAI offers Grok models in multiple sizes for different use cases.

For the current list of available models, refer to xAI’s documentation.

Configuration parameters

Standard OpenAI-compatible parameters:

Parameter	Range	Description
Temperature	0.0 - 2.0	Response randomness
Max Tokens	1+	Maximum response length
Top P	0.0 - 1.0	Nucleus sampling
Presence Penalty	0 - 2.0	Hidden on reasoning models
Frequency Penalty	0 - 2.0	Hidden on reasoning models

Tool calling

• Supported Tool Choices: OpenAI-compatible.
• Parallel Execution: Yes (if supported).

Common Configuration Across All Providers

Extra Parameters

All providers support a JSON editor for extra parameters not exposed in the UI:

{
  "logprobs": true,
  "top_logprobs": 5,
  "custom_parameter": "value"
}

Use cases:

• Provider-specific beta features
• Advanced parameters not yet in UI
• Custom metadata for tracking

Limitation: Cannot override parameters already in the UI (e.g., can’t set temperature here if it’s set above)

Rate Limiting

Requests Per Second (RPS) - Available for all providers when running over datasets:

• Range: 0 - 500 RPS
• Purpose: Respect API rate limits, control costs
• Default: Varies by provider

Set this when running experiments or evaluations to avoid hitting rate limits.

Next steps

Configure prompt settings

Learn how to create and manage model configurations in the Playground.

Create a prompt

Get started building prompts with your chosen model provider.

---

Connect these docs to Claude, VSCode, and more via MCP for real-time answers.

Edit this page on GitHub or file an issue.
